Description

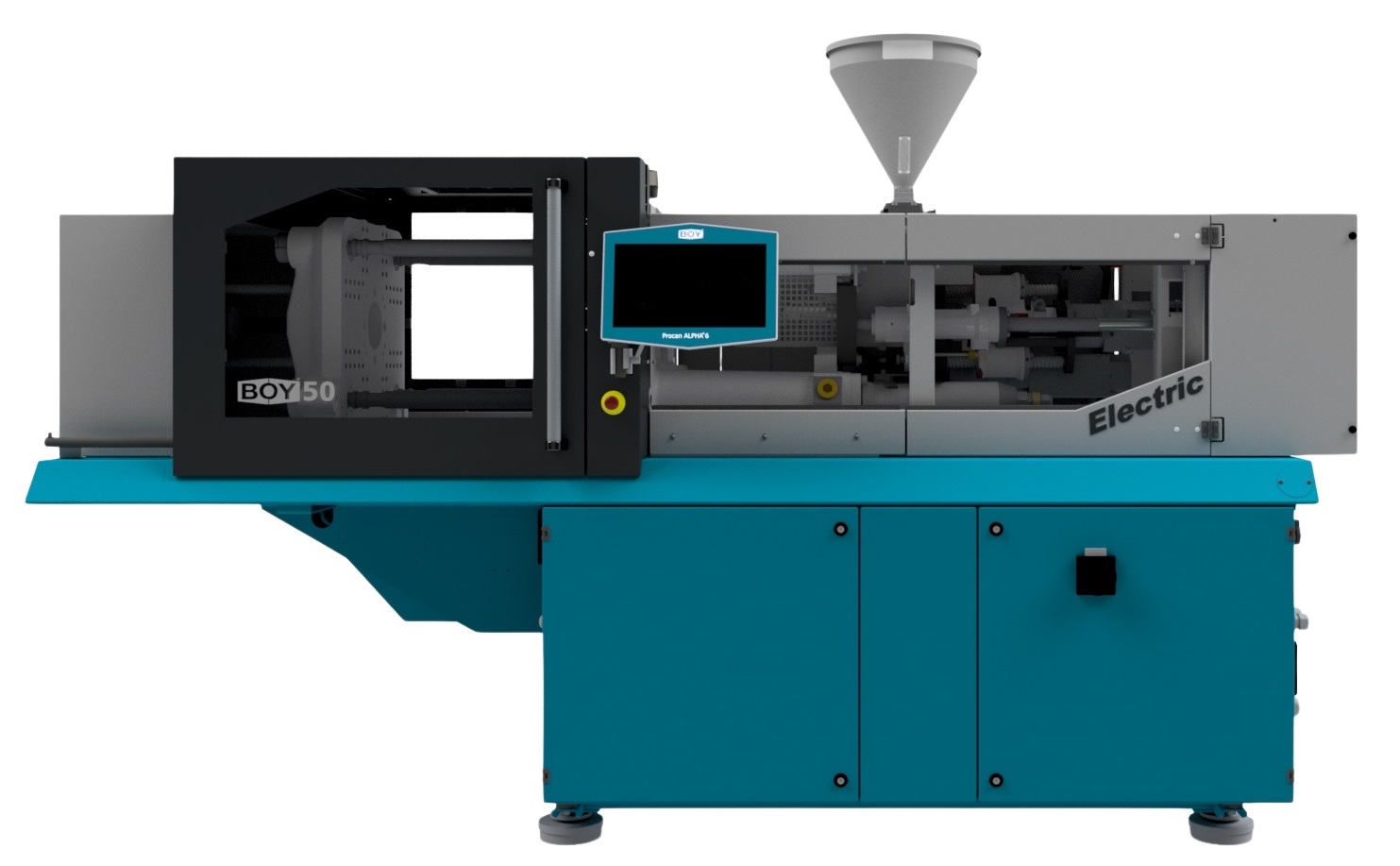

BOY 50 Electric
Advantages
• Parallel movement without double pump
• Compactness of a two-platen machine
• Highly dynamic injection unit
• Lubricant free tool installation area
• Improved synchronised movement during ejection
• Highest positioning accuracy
• Fitted with ALPHA® 6 control
• Floor space requirement of 3.41m2 (3110 x 1097 x 2008mm)
Technical data
• Clamping force: 500 kN
• Max. daylight between platen: 650mm
• Distance between tie bars: 360 x 335 mm (h x v)
• Choice of 12, 14, 18, 22, 24, 28 or 32mm diameter plasticising units
• Max. shot volume: 76.5 cm3 (theoretical)
