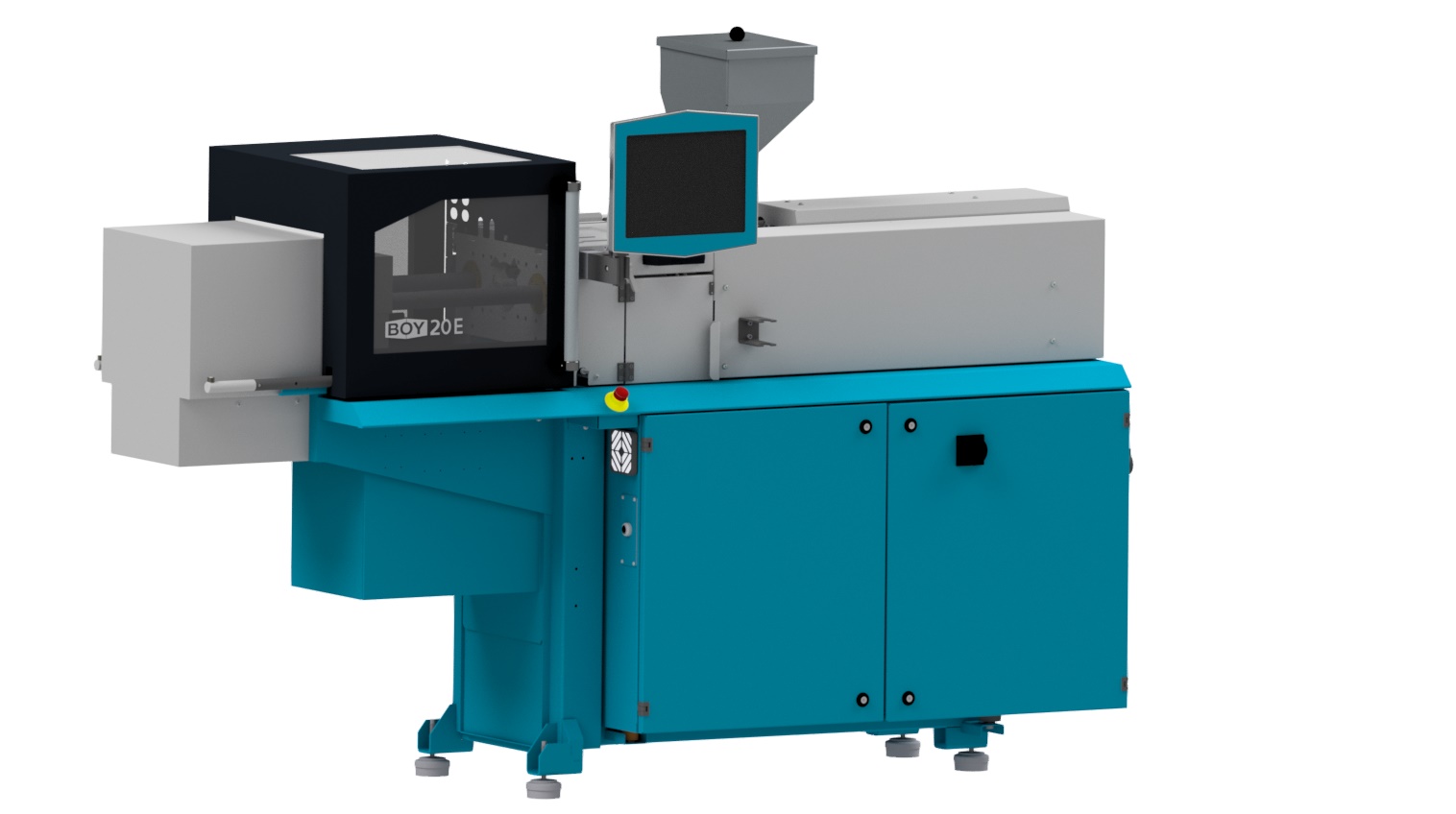

BOY 20 E PRO injection moulding machine
The BOY 20 E PRO is a ruggedly designed injection moulding machine constructed for industrial continuous operation and longevity.
The very compact injection moulding machine (merely 1.8m2) features a cantilevered clamping unit which offers optimal accessibility and parts removal.
Equipped with 200 kN clamping force and an energy-saving, electronically controlled variable displacement pump as well as the multipatented Procan ALPHA screen control, the BOY 20 E PRO delivers efficient production in a compact space.
Even in comparison to older machine generations, the BOY 20 E PRO is impressive in its low energy consumption and faster cycle times.
In addition to the injection units 11 and 15, the injection unit SP 52 with a total of seven screw diameters offers a wide range of possible applications.
Advantages
- High technology – Low price
- Start of the art control
- Entry into energy-efficient servo motor pump drives
- New design
- Attractive price/performance ratio
- Robust, well thought-out design
- Highly efficient through low machine hour rates
- Generous mould mounting dimensions with additional mounting possibilities
Technical data
• Euromap size: 250-69 (Standard) 250-11 / 250-16 / 250-39 / 250-56 / 250-82 (Optional)
• Clamping force: 200 kN
• Max. daylight between platen: 400 mm
• Distance between tie bars: 254 mm
• Max. shot volume: 64.3 cm3 (theoretical)
